Alu-Cab Modcap Camper

Alu Cab ModCAP Camper - One Modular Platform. Four Configurations. Supplied & Fitted in Newcastle.

Start with a canopy. Upgrade to a compact, 2-sleeper, or family camper without replacing the base unit. Workshop-fitted at Kotara, NSW for customers from Newcastle, Sydney and across NSW.

GET AN ALU-CAB QUOTE HERE

I have read and agree to the Terms & Conditions and Privacy Policy, and consent to being contacted by All Four x 4 Spares regarding my quote and related business updates

WHAT MAKES MODCAP DIFFERENT?

One System. Built to Grow With You.



The ModCAP is not a canopy. It's not a camper. It's a modular platform, starting as a premium flat-roof canopy and upgrading into a compact camper, full 2-sleeper, or family camper sleeping four adults. The base unit stays on the vehicle. The tent module swaps in when you need it. Buy the Canopy today. Fit the Family Camper in three years. Same base, bigger adventure.



vs Standard Canopy

The ModCAP Canopy has a 150kg dynamic roof load and rear entry but unlike a standard canopy, it's already future-ready for a camper module. No new purchase, no reinstall.

vs Fixed Canopy Camper

A Canopy Camper is one integrated unit. The ModCAP lets you build in stages, start simple, add the camper module when you're ready. The platform doesn't limit you.

Platform coverage

Dual cab, extra cab, LandCruiser 79 Series, and American full-size trucks (short and long bed). We confirm vehicle-specific fitment at enquiry stage.

MODCAP MODEL RANGE

THE UPGRADE PATH

Canopy → Compact → 2-Sleeper → Family

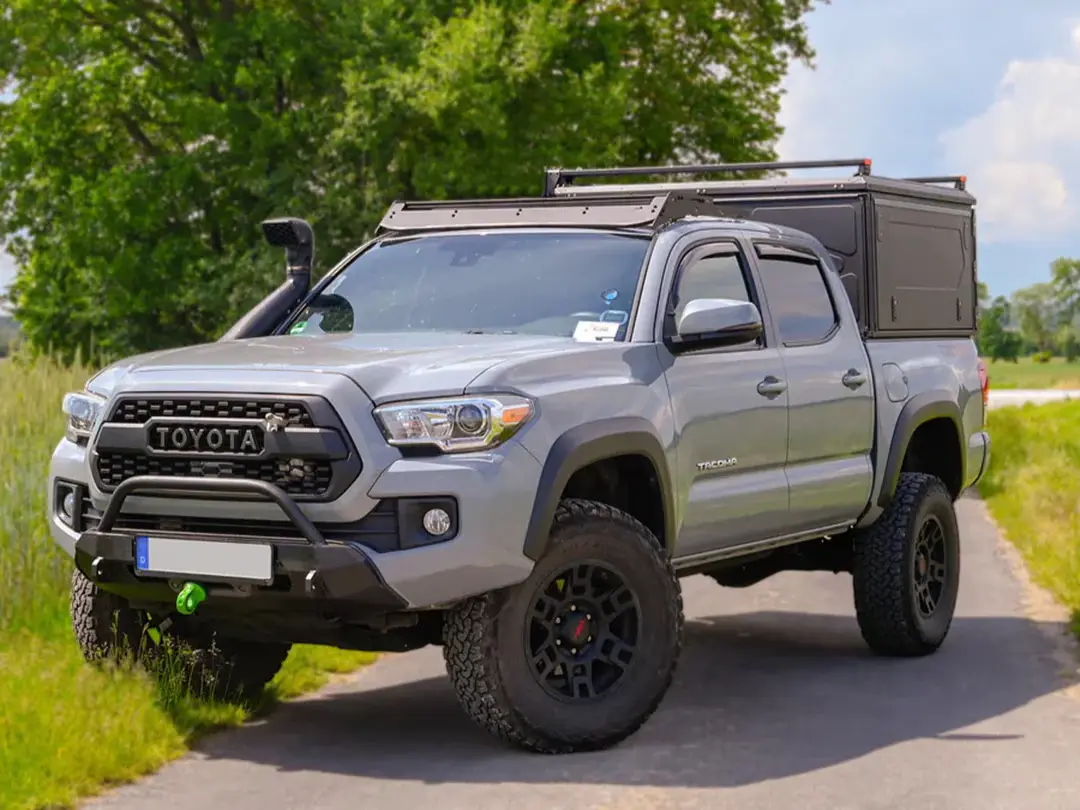

ModCAP Canopy - Flat Roof

Dail utility with full upgrade potential - 110Kg double cab

The entry point. A premium flat-roof canopy with rear door entry, gas-assisted side access doors, fully welded sealed aluminium, and the highest dynamic roof load in the range at 150kg. Use it daily trade, touring, storage. When you're ready to upgrade, the flat roof swaps for a camper module without touching the base.

Built for
Tradies, tourers, and anyone who wants a premium canopy today with a clear upgrade path to a camper in the future. The only canopy you'll ever need to buy.

Key features:

  • Fully welded sealed aluminium
  • Gas-assisted side access doors
  • Full swing-out vertical rear door
  • Optional side windows
  • High-level brake light
  • Integrated roof rails
  • 150kg dynamic roof load rating
  • 200kg static roof load
  • Smooth contoured finish
  • Rear door entry (not tailgate)
  • Seamless module integration
  • Upgradeable - roof module only
Height & weight by platform:

Platform Height Weight
Double cab 730mm 110kg
Extra cab 730mm 120kg
Short bed (US) 840mm 130kg
Long bed (US) 840mm 145kg
79 Series DC 960mm 140kg

Roof load: 200kg static / 75kg dynamic



ModCAP Compact Camper

Leanest camper in the range · Zero overhang · 160kg double cab

The leanest, most agile camper in the ModCAP range. Adds just 70mm of height over the flat roof with zero overhang, keeping the vehicle's rear profile tight and trail-friendly. Internal access from canopy to sleeping area, split mattress system (most stays inside when closed), and the largest exterior roof packing area of any lightweight ModCAP camper.

Built for
Weight-conscious tourers, weekend adventurers, and anyone who needs a garage-friendly, trail-friendly camper without the payload hit of the larger modules.



Key features:

  • Zero overhang, tight rear profile
  • Adds only 70mm height over flat roof
  • Full internal access, no ladder
  • Split mattress, stays inside when closed
  • Double-layer 280gsm ripstop canvas
  • Foam insulation top and bottom
  • Built-in air vent
  • Four internal storage bags
  • Internal lighting
  • 2 × rear exterior MOLLE plates included
  • Solar wiring pre-run
  • Integrated roof rails

Specs:

  • Double cab height   800mm from tub
  • Double cab weight   160kg
  • Bed size   2025 × 1350mm
  • Sleeping area   2.73m²
  • Mattress   60mm HD foam, zip-off
  • Sleeps   2 adults
  • Fold-out load capacity   100kg
  • Roof load (static closed)   200kg
  • Roof load (dynamic)   75kg
ModCAP 2-Sleeper Camper

Full overlanding setup · 3.07m² sleeping area · 220–250kg

The full ModCAP camper module. Full internal standing height, seamless canopy-to-tent access, 3.07m² sleeping area on a 70mm high-density mattress, and 150kg dynamic roof load. The most popular ModCAP configuration for couples and solo tourers on extended trips, outback runs, cross-country overlanding, extended bush camps.

Built for
Serious tourers doing extended trips. The 2-Sleeper with Drive-Off Base is the go-to setup for overlanders who need the ute free at camp while keeping the camper set up.

Key features:

  • Full internal standing height
  • Internal tent access, no ladder
  • Double-layer 280gsm ripstop canvas
  • Foam insulation top and bottom
  • Built-in air vent
  • Internal storage bags
  • Internal lighting
  • Hi-level brake light
  • Solar wiring pre-run
  • Side access canopy doors
  • Large swing-out rear door
  • Integrated roof rails
Height & weight by platform:

Platform Height Weight
Double cab 945mm 220kg
Extra cab 945mm 225kg
Short bed (US) 1055mm 240kg
Long bed (US) 1055mm 250kg
79 Series DC 1175mm 245kg

Bed & sleeping:
2075 × 1225mm + 430 × 1225mm hatch · 3.07m² total · 70mm HD foam · Sleeps 2

Roof load:
200kg static (closed) / 50kg static (open) / 150kg dynamic

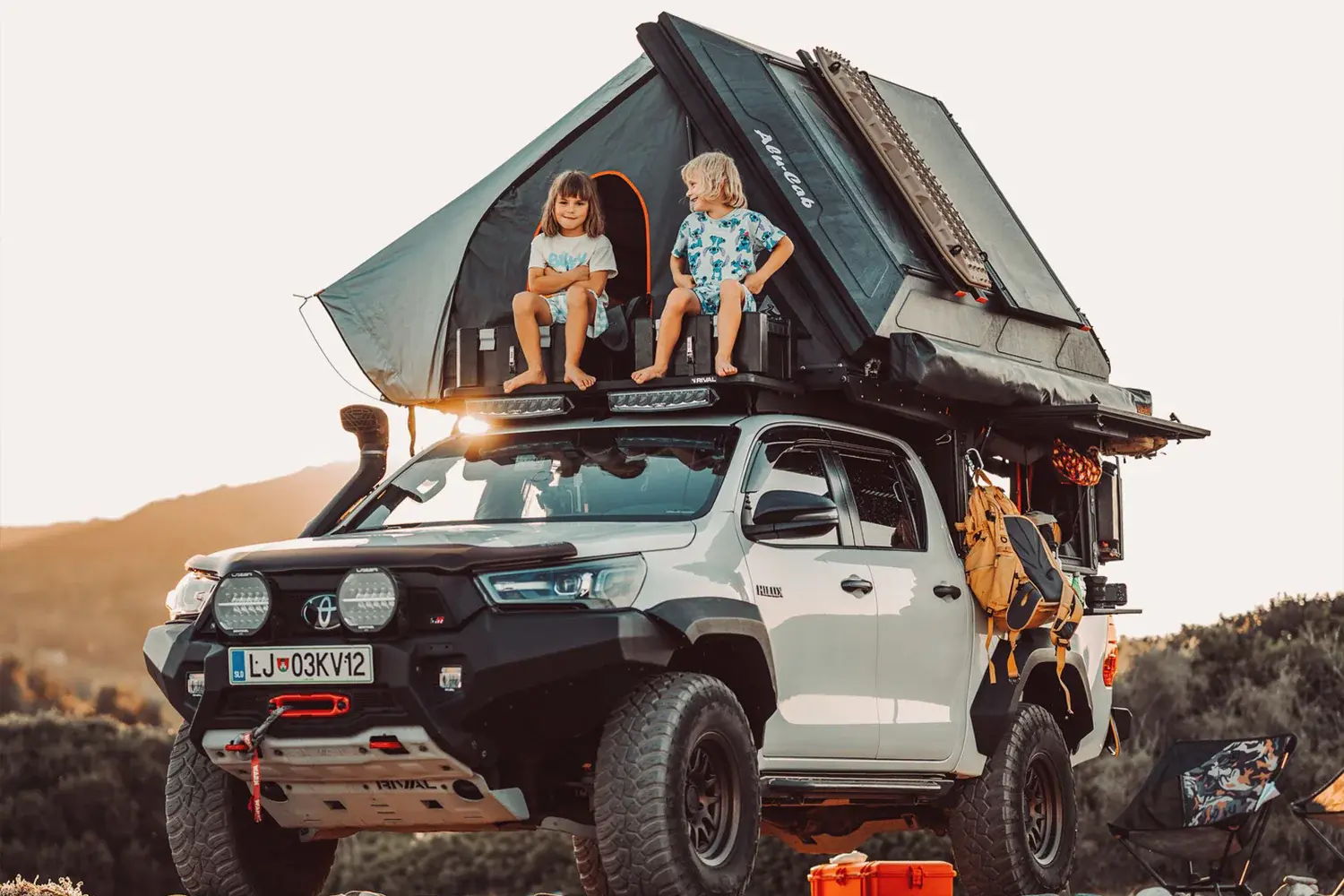

ModCAP Family Camper

4.8m² · Sleeps 4 adults · Skylight · Dual USB/Type-C/cig outlets · 250–280kg

The top of the ModCAP range. A side-opening design creates 4.8m² of sleeping space four adults, four pillows, two duvets when closed. The Family Camper adds features not found on other modules: a 315gsm heat-reflective flysheet, marine-grade PVC skylight, 2 × 12 LED dual-colour lights with individual switches, and 2 × USB + 4 × Type-C + 2 × cigarette lighter outlets. One vehicle. Four people. No trailer.

Built for
Families and groups who want a proper campsite from one vehicle, school holidays, the big lap, long weekends without the towing complexity of a caravan.

Key features, Family only:

  • Side-opening design, 4.8m² sleeping area
  • 315gsm heat-reflective canvas flysheet
  • Marine-grade PVC UV-resistant skylight
  • 2 × 12 LED dual-colour lights (red/white), individual switches
  • 2 × USB + 4 × Type-C + 2 × cigarette lighter power outlets
  • Built-in air and heater vents
  • Fits 4 pillows and 2 duvets inside when closed

Plus all 2-Sleeper features.

Height & weight by platform:

Platform Height Weight
Double cab 955mm 250kg
Extra cab 955mm 255kg
Short bed (US) 1065mm 270kg
Long bed (US) 1065mm 280kg
79 Series DC 1185mm 275kg

Bed & sleeping:
2400 × 2000mm · 4.8m² total · 70mm HD foam · Sleeps 4 adults

Roof load:
200kg static (closed) / 50kg static (open) / 150kg dynamic
alucab Drive-Off Base - Slide off Capability

Remove the whole unit in minutes · 80kg double cab · Legs sold separately

The Drive-Off Base converts your ModCAP or Canopy Camper into a self-contained slide-off unit. Fixed install during the week, remove the whole camper in minutes at camp without uninstalling from the tub. Integrated T-slot mounting rails for fridges, drawers, and water tanks. Vinyl flooring and four side storage pockets.

Built for
Tourers who want to park the camper at camp and use the ute independently without the complexity of reinstalling the ModCAP from the tub mounting each time.

  • Vinyl flooring
  • 4 side storage pockets
  • Quick-mount M12 eye nuts
  • Integrated T-slot mounting rails
  • Compatible with full ModCAP and Canopy Camper range
  • Slide-on / slide-off design

⚠ Legs must be purchased separately. We work through the right configuration at enquiry.

Specs:

  • Double cab weight    80kg
  • Flooring    Vinyl
  • Storage pockets    4 side pockets
  • Mounting    M12 eye nuts
  • Compatibility    ModCAP + Canopy Camper
  • Legs    Sold separately

MODCAP ACCESSORIES

The ModCAP platform works with Alu-Cab's full accessory range. Fitted in our Kotara workshop at install or as later upgrades.



🍳 Living & Kitchen

  • Rear Door Kitchen
  • MaxTrax Fold-Out Side Table
  • Side Slide Prep Table
  • Interior Drop-Down Table
  • Rear Door Drop-Down Table
  • ModCAP Family Table Slide
  • Camper Backrest
  • Tow Bar Step

📦 Storage & MOLLE

  • Under Bed MOLLE Plate
  • Internal Front Panel MOLLE
  • Rear Door MOLLE Plates
  • Interior Rear Corner MOLLE
  • Rear + Side Exterior MOLLE
  • Security Window Grid
  • Canvas Bags (front, rear door)
  • Jerry Can + Gas Bottle Holders
  • Spare Wheel Mount

💧 Water

  • 50L Water Tank Kit
  • Water Tank Adaptor Kit
  • Water Tank MOLLE Kit
  • Water Tank Canvas Bag Kit



🌿 Comfort & Protection

  • Side + Rear Door Mozzie Nets
  • Rear Door Slide Lock
  • Shadow Awning Mounting Brackets
  • Push Button Lock Covers
  • Fireplace MOLLE Plate

Alu-Cab MODCAP Supply & Fitment at All Four x 4 Spares

We supply and workshop-fit the full Alu-Cab ModCAP range from our Kotara, NSW workshop. Customers travel from across NSW for proper fitment and build planning — not just a drop-off.

  • ModCAP supply across all four configurations
  • Workshop fitment to your specific vehicle and tub
  • Bed liner assessment and modification prior to install
  • GVM assessment and Lovells upgrade where required
  • Drive-Off Base fitment and leg configuration
  • Full accessory fitment bundled at install
  • Electrical integration, dual battery, solar, 12V

The ModCAP mounts directly to your tub. Fitment matters, a poorly mounted unit on a corrugated track is a problem we see regularly from improper installs. We do it once, properly.



Locations we serve
NSW-wide, customers travel for proper fitment

  • Newcastle: Kotara workshop base
  • Lake Macquarie: Local & surrounding areas
  • Hunter Valley: Maitland, Cessnock, Branxton
  • Central Coast: Gosford, Wyong & surrounds
  • Sydney: Metro & northern suburbs
  • Port Stephens: Nelson Bay & surrounds
  • Upper Hunter: Singleton, Muswellbrook
  • Mid North Coast: Taree, Port Macquarie

Alu-Cab MODCAP - FAQ

  • What makes the ModCAP different from a standard Canopy Camper? The ModCAP is modular, you start with a flat-roof canopy and upgrade to a compact, 2-sleeper, or family camper without replacing the base unit. The Canopy Camper is a fixed integrated system. The ModCAP is a platform you build over time.



  • Can I start with the ModCAP Canopy and upgrade to a camper later? Yes. That's the core design intent. The flat roof and tent modules are fully interchangeable on the same base. You're not buying a new product when you upgrade, you're adding a module to what's already fitted to your vehicle.



  • What vehicles does the ModCAP suit? The ModCAP covers most dual-cab and extra-cab domestic utes, LandCruiser 79 Series dual cab, and American full-size trucks in short and long bed configurations. Contact us with your make, model, and build year to confirm fitment.



  • Is the ModCAP a permanent installation? The standard ModCAP mounts directly to your tub, it's reversible, but not something you'll remove casually. If you want regular slide-off capability, the Drive-Off Base lets you remove and reinstall the whole unit in minutes without touching the tub mounting.



  • Do I need a GVM upgrade to run a ModCAP? Possibly. The flat-roof canopy starts at 110kg, but the 2-Sleeper and Family modules push 220–280kg before accessories and personal gear. On a well-optioned dual-cab ute you may be near your limit. We assess this at quote stage.



  • How does the ModCAP Family Camper sleep four people? The Family Camper uses a side-opening design creating a 2.4m × 2m sleeping area — 4.8m² total. When closed, it fits four pillows and two duvets inside. Two adults in the main area, two in the extended section.



  • Can I fit a ModCAP to a 79 Series LandCruiser? Yes. Vehicle-specific mounting kits are available for the 79 Series dual cab across the Canopy, 2-Sleeper, and Family Camper modules. The 79 sits taller, height from tub top ranges from 960mm (flat roof) to 1185mm (Family Camper).



  • Do you fit ModCAP systems for customers from Sydney? Yes. We're based in Kotara, NSW, approximately 2 hours north of Sydney CBD. Customers regularly travel from Sydney metro, Central Coast, and Hunter region for ModCAP fitment. Most combine the install with accessory fitment or a GVM assessment.
